If you've ever walked through a furniture tube workshop, one thing becomes obvious pretty fast: running fast is important, but running stable is what really counts.
For chair legs and table frames, tubes are not hidden inside a structure. They are exposed, bent, sometimes chrome plated, and directly affect the final look. That's why most factories don't take risks here—they stick with HF tube mills.
From what you’ll typically see on lines like Mivi's, a tube mill is not just one machine. It's a full production line where everything is connected, from coil feeding all the way to finished tubes.
What Makes Furniture Tube Mills a Bit Special?
Furniture tubes are usually thin and not very large in diameter. Sounds simple, but actually harder to control.
Why? Because surface quality matters a lot more. A tiny weld mark or uneven wall can show up clearly after plating or painting.
So in real production, operators usually care about three things:
- forming has to be steady
- welding must be clean
- surface should stay smooth
Simple to say, not so easy to keep consistent over long runs.

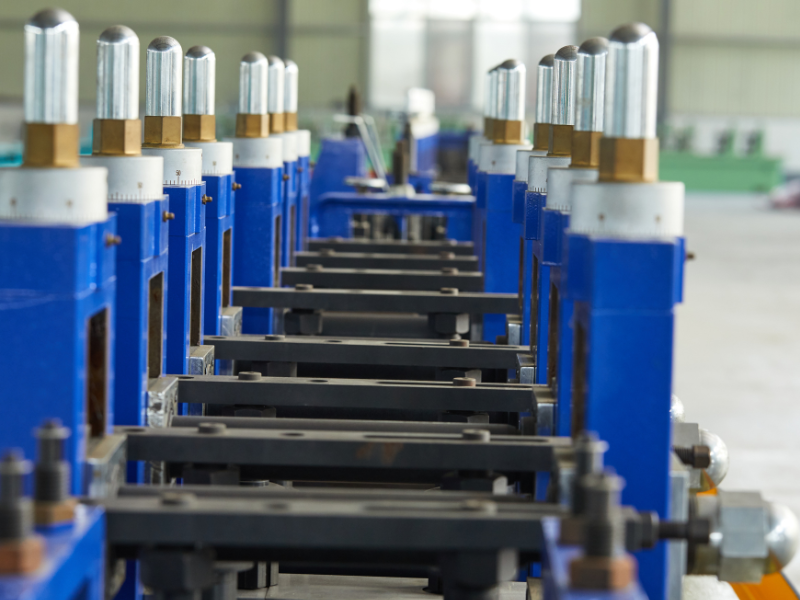

How the Process Actually Runs
The line starts with a steel coil, and once it begins, it rarely stops.
First step is uncoiling and leveling. If the strip isn't flat enough at this stage, problems will follow all the way down the line.
Then comes forming. The strip goes through multiple roll stands, slowly changing shape—from flat, to “U”, then to almost closed, and finally into a round tube.
When the edges come together, high-frequency current heats them very quickly. At the same time, squeeze rolls press them together, creating the weld. No filler is added—the material bonds itself under heat and pressure.
After that, the tube is cooled and passes through sizing rolls. This is where the final diameter (or square shape, if needed) is fixed.
At the end of the line, a flying saw cuts the tube to length without stopping production.
From start to finish, the whole process is continuous—that’s where the efficiency comes from.
Once the strip edges come together, things happen very quickly. High-frequency current heats the edges almost instantly, and at the same time, squeeze rolls press them together. There’s no filler involved—the material itself bonds under heat and pressure, forming the weld.
After that, the tube doesn’t stop—it keeps moving. It goes through cooling first, then enters the sizing section where the final dimensions are fixed. If the order requires square or rectangular tubes (which is quite common for table frames), the round tube is reshaped here.
At the end of the line, a flying saw cuts the tube to the required length while everything is still running. No stop, no pause.
That continuous movement—from forming to cutting—is really what gives a tube mill its efficiency.
Why HF Tube Mills Fit Furniture Production
From a factory perspective, HF tube mills aren’t just “good enough”—they solve real, day-to-day production problems.
1. Fast, but still controllable
These lines can run quite fast, but the key is they stay stable while doing it. That’s important when you’re producing large batches for furniture orders where consistency matters.
2. Surface quality is easier to manage
For furniture tubes, surface matters a lot. Whether it’s chrome plating or powder coating, a smoother weld seam means less grinding and polishing later on.
3. Shape flexibility
Round tubes are standard, but furniture design often calls for square or rectangular profiles. With the right roll setup, the same line can handle all of them without major changes.
4. Better use of material
Using strip steel instead of billets helps reduce waste. For factories working with tight margins, that difference adds up over time.
What Operators Actually Pay Attention To
In real production, running a tube mill isn't just pressing a button and walking away.
Operators usually keep an eye on a few key points:
- whether the strip edges line up properly before welding
- forming pressure at different roll stands
- welding temperature and squeeze force
- surface condition after sizing
Small issues here can turn into visible defects later. For example, if alignment is slightly off, the weld line may still show after plating—and that's something customers will notice immediately.

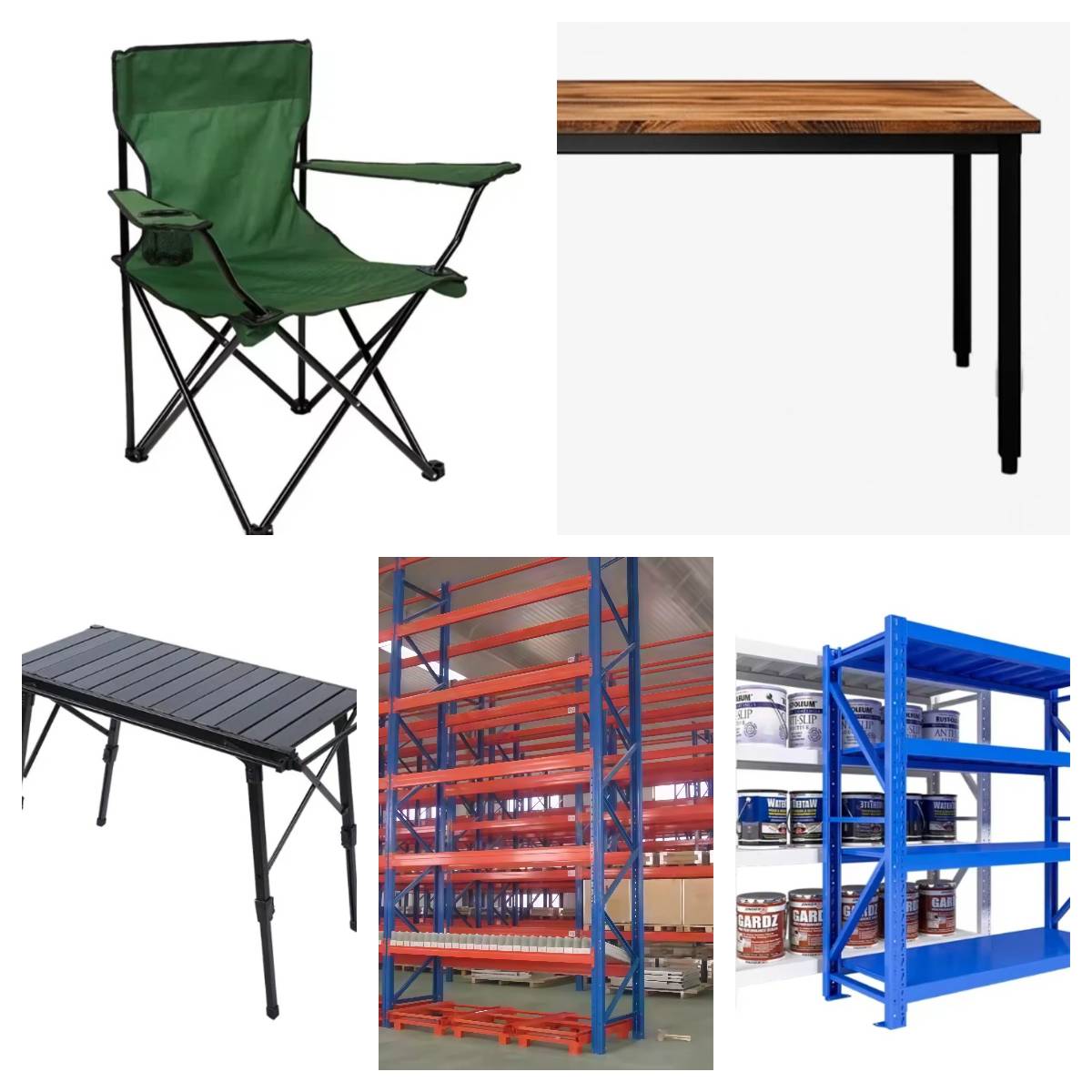

Where These Tubes End Up
The tubes produced on these lines go straight into everyday products, like:
- chair legs
- table frames
- storage racks
- decorative metal parts
These applications don't just need strength—they also need a clean look. That's one of the main reasons HF welded tubes are so widely used.
Final Thoughts
On paper, the process sounds simple: form it, weld it, cut it.
But in actual production, it’s more about control than steps. Keeping everything stable—speed, alignment, temperature—that’s where the real challenge is.
That’s also why HF tube mills are so widely used today. They hit a practical balance: fast enough for volume production, but still precise enough for furniture-grade tubes. For most manufacturers in this space, this isn’t a special solution—it’s just how things are done now.
